Non-Tipping Silo Semi Trailer

K.SSL 31 / 2 - 10 / 24

Non-Tipping Silo Semi Trailer

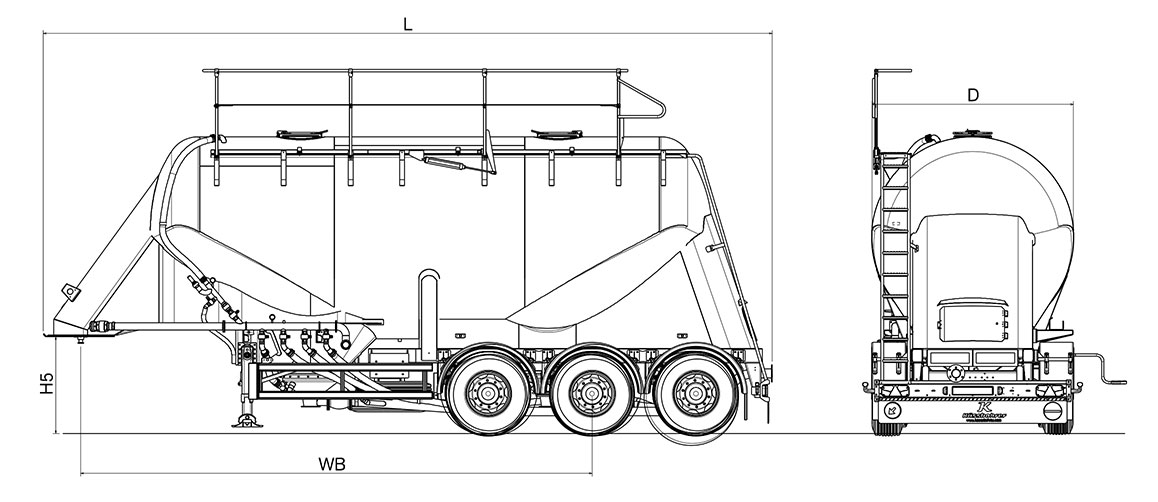

Technical data

  • Fifth Wheel Height (H5)1.220 mm
  • Tank Diameter (D)2.550 mm
  • Wheelbase (WB)6.450 mm
  • External Length (L)9.315 mm
  • Volume31,0 m3
  • Tare Weight ±%34.600 kg
  • Operation Temperature °C-20/80°C
  • Test Pressure (Bar)3,0 bar
  • Operation Pressure (Bar)2,0 bar
  • Gross Weight34.000 kg



Technical information

  • ChassisAluminum
  • Brake SystemThere is a dual-circuit electro-pneumatic braking system with WABCO EBS 4S / 2M antiblocking system suitable for UN ECE R13 regulati on and an integrated RSS electronic stability control system in the braking system
  • Tyre Size385/65 R 22.5
  • Axle BrandEquipped with BPW branded 3 air suspension and disc brake axles with 9 ton permissible load capacity each
  • Electric SystemASPÖCK lightning installation with 24 V LED side position lamp and 2x7 and 1x15- pin sockets, in compliance with Regulation UN ECE R48 and ADR Legislation
  • Number Of Compartments1 Compartment
  • Manhole Number2 x DN450 Pressure Type Domes
  • Discharge TypeDischarge type from the rear
  • Hose CarrierHose carrier is not available



Technical capacities

  • Axle Load27.000 kg
  • King Pin Capacity12.000 kg
