Curtainsider Extensive

K.SCX X / 125 - 12 / 27

Curtainsider Extensive

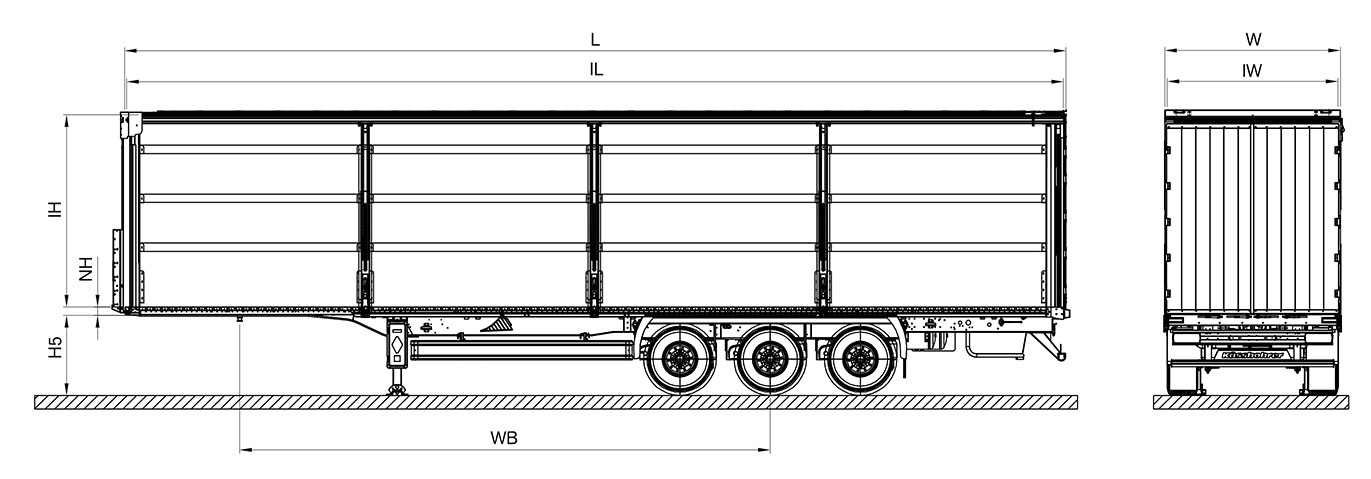

Technical data

  • Fifth Wheel Height (H5)1.150 mm
  • Gooseneck (NH)125 mm
  • Wheelbase (WB)7.700 mm
  • Internal Height (IH)2.690 mm
  • External Length (L)13.680 mm
  • Internal Length (IL)13.610 mm
  • Total Width (W)2.550 mm
  • Internal Width (IW)2.480 mm
  • Tare Weight ±%36.560 kg



Technical information

  • ChassisMade of high quality and high strength S460 MC steel, in compliance with Standard ISO 1726-2. Made of two welded longitudinal beams i n "I" form with cross beams at needed distances. Reinforced with KTL protection with Kässbohrer expertise (10 years warranty for per foration)
  • Brake SystemAntiblocking (ABS) and rolling control system suitable for UN ECE R13 regulation.EBS 2S / 2M braking system of with electro-pneumatic dual-circuit that contains power supply (RSS) and voltage supply (24V) through brake light
  • Tyre Size385/65 R 22.5
  • AxlesBPW air suspension and disc brake axle with 9 ton capacity each
  • Electric SystemASPÖCK branded lightning installation which contains 2x7 and 1x15 pin sockets, 24 V in compliance with UN ECE R48 regulation and ADR legislation. The front position lamps and side position lamps are led, and the rear stop lamps are Aspöck Europoint III bulb type.
  • K-FixK-Fix has 118 holes every 70 mm at the side rave which increase load lashing variaties. Each load strapping point has a load capacity of 2.5 tons and sutable for all kind of spansets.
  • FloorPhenol resin coated, 30mm thick and water resistant plywood flooring that can support 7.200 kg forklift axle load in compliance wit h DIN EN 283
  • Front Panel TypeKTL coated steel panel and 1.220 mm plywood protection plate
  • Roof TypeEDSCHA brand, one-way sliding roof system opening from rear



Technical capacities

  • King Pin Capacity12.000 kg
  • Axle Load27.000 kg
  • Gross Weight39.000 kg
  • Pallet Capacity34 units
